Demodulator Probe PSD

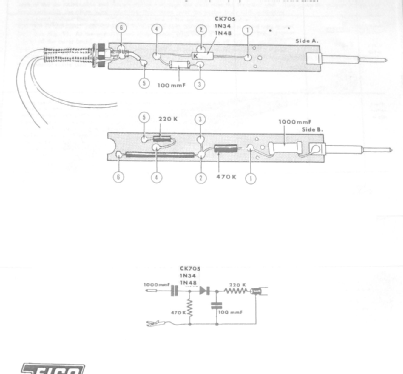

Demodulator Probe PSD; EICO Electronic (ID = 1315123) Equipment
Demodulator Probe PSD; EICO Electronic (ID = 1314450) Equipment
Use red slider bar for more.
Demodulator Probe PSD; EICO Electronic (ID = 1314450) Equipment
EICO Electronic: Demodulator Probe PSD [Equipment] ID = 1314450 933x622
Select picture or schematic to display from thumbnails on the right and click for download.
For model Demodulator Probe PSD, EICO (Electronic Instrument Co.Inc.) Brooklyn

Country:  United States of America (USA)
Manufacturer / Brand:  EICO (Electronic Instrument Co.Inc.) Brooklyn
Year: 1954 Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) 1N34
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Demodulator Probe PSD - EICO Electronic Instrument Co.
Material Various materials
Dimensions (WHD) 160 x 15 x 15 mm / 6.3 x 0.6 x 0.6 inch
Notes

May be used with any scope or VTVM for visual indication or with a signal tracer (e.g.Weston TS-673/U) for an audible signal.

Demodulates amplitude-modulated carriers between 150 kHz and 250 MHz; permits to use any scope as a waveform tracer, gain analyzer, and alignment indicator in all TV & Radio RF & IF stages; audio response from 20 Hz to 6 kHz includes both high and low frequency components of demodulated 60 Hz square wave to make this probe particularly good for observation of sweep curve response.

Net weight (2.2 lb = 1 kg) 0.2 kg / 0 lb 7 oz (0.441 lb)
Source of data -- Original prospect or advert

Model page created by Emilio Focosi. See "Data change" for further contributors.
