Grid Dip Meter 710
EICO (Electronic Instrument Co.Inc.) Brooklyn
- Country
- United States of America (USA)
- Manufacturer / Brand
- EICO (Electronic Instrument Co.Inc.) Brooklyn
- Year
- 1960 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 80736

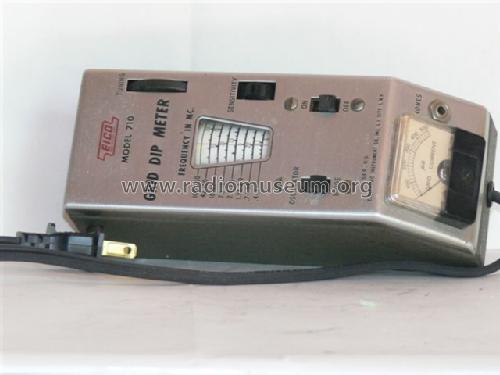

View.
Chassis.
Top view.
Meter.
Chassis.
Eico 710 grid-dip meter with full coil set
aus ebay, #380316642294, Verkäufer sx28
Q= prospectus
aus ebay, #380316642294, Verkäufer sx28
aus ebay, #380341951737, Verkäufer sx28
1964 Eico Catalog Advertisement
1968 Eico catalog, page 13.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- 6AF4A
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Material
- Metal case
- from Radiomuseum.org
- Model: Grid Dip Meter 710 - EICO Electronic Instrument Co.
- Dimensions (WHD)
- 70 x 60 x 170 mm / 2.8 x 2.4 x 6.7 inch
- Notes
- 450KHz - 250MHz
- Price in first year of sale
- 199.00 DM
- Mentioned in
- -- Schematic
- Author
- Model page created by Bernd Pötzsch. See "Data change" for further contributors.
