Stereo-Amplifier HF-86

Stereo-Amplifier HF-86; EICO Electronic (ID = 496258) Ampl/Mixer

Stereo-Amplifier HF-86; EICO Electronic (ID = 496259) Ampl/Mixer

Stereo-Amplifier HF-86; EICO Electronic (ID = 496260) Ampl/Mixer

Stereo-Amplifier HF-86; EICO Electronic (ID = 496261) Ampl/Mixer
Stereo-Amplifier HF-86; EICO Electronic (ID = 1564059) Ampl/Mixer Stereo-Amplifier HF-86; EICO Electronic (ID = 1564061) Ampl/Mixer
Stereo-Amplifier HF-86; EICO Electronic (ID = 1564063) Ampl/Mixer Stereo-Amplifier HF-86; EICO Electronic (ID = 1263920) Ampl/Mixer

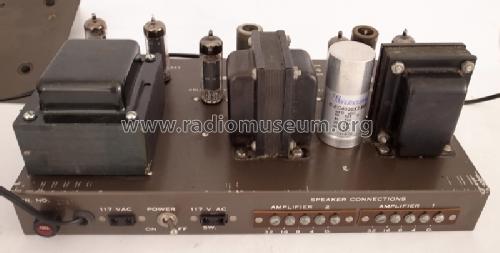

Stereo-Amplifier HF-86; EICO Electronic (ID = 1564064) Ampl/Mixer Stereo-Amplifier HF-86; EICO Electronic (ID = 1564065) Ampl/Mixer
Stereo-Amplifier HF-86; EICO Electronic (ID = 1564066) Ampl/Mixer
Use red slider bar for more.
Stereo-Amplifier HF-86; EICO Electronic (ID = 1564059) Ampl/Mixer
EICO Electronic: Stereo-Amplifier HF-86 [Ampl/Mixer] ID = 1564059 592x362
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo-Amplifier HF-86, EICO (Electronic Instrument Co.Inc.) Brooklyn:
aus ebay, #331009565584, Verkäufer mekons123

Country:  United States of America (USA)
Manufacturer / Brand:  EICO (Electronic Instrument Co.Inc.) Brooklyn
Year: 1961/1962 Category: Audio Amplifier or -mixer
Valves / Tubes 8: 12DW7 or 7247 12DW7 or 7247 6BQ5 or 7189 6BQ5 or 7189 6BQ5 or 7189 6BQ5 or 7189 6CA4 6CA4
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110-120 Volt
Loudspeaker - This model requires external speaker(s).
Power out 28 W (undistorted)
from Radiomuseum.org Model: Stereo-Amplifier HF-86 - EICO Electronic Instrument Co.
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 13.5 x 5 x 9 inch / 343 x 127 x 229 mm
Notes

Stereo power amplifier, Williamson-type circuit; recommended preamp Eico HF-85.

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Folder 5, Set 574)

Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.



All listed radios etc. from EICO (Electronic Instrument Co.Inc.) Brooklyn
Here you find 156 models, 151 with images and 87 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
