Hi Fi Power Amplifier HF-35

Hi Fi Power Amplifier HF-35; EICO Electronic (ID = 590028) Ampl/Mixer

Hi Fi Power Amplifier HF-35; EICO Electronic (ID = 590029) Ampl/Mixer

Hi Fi Power Amplifier HF-35; EICO Electronic (ID = 590030) Ampl/Mixer

Hi Fi Power Amplifier HF-35; EICO Electronic (ID = 590031) Ampl/Mixer
Hi Fi Power Amplifier HF-35; EICO Electronic (ID = 516788) Ampl/Mixer Hi Fi Power Amplifier HF-35; EICO Electronic (ID = 516789) Ampl/Mixer
Hi Fi Power Amplifier HF-35; EICO Electronic (ID = 516790) Ampl/Mixer Hi Fi Power Amplifier HF-35; EICO Electronic (ID = 516791) Ampl/Mixer
Hi Fi Power Amplifier HF-35; EICO Electronic (ID = 516792) Ampl/Mixer Hi Fi Power Amplifier HF-35; EICO Electronic (ID = 516793) Ampl/Mixer
Use red slider bar for more.
Hi Fi Power Amplifier HF-35; EICO Electronic (ID = 516788) Ampl/Mixer
EICO Electronic: Hi Fi Power Amplifier HF-35 [Ampl/Mixer] ID = 516788 855x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hi Fi Power Amplifier HF-35, EICO (Electronic Instrument Co.Inc.) Brooklyn:

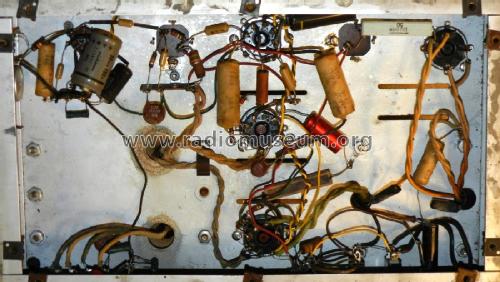

aus ebay, Verkäufer uncle-papa

Country:  United States of America (USA)
Manufacturer / Brand:  EICO (Electronic Instrument Co.Inc.) Brooklyn
Year: 1959 ?? Category: Audio Amplifier or -mixer
Valves / Tubes 5: EF86 6SN7GTB EL34 EL34 GZ34
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker - This model requires external speaker(s).
Power out 35 W (unknown quality)
from Radiomuseum.org Model: Hi Fi Power Amplifier HF-35 - EICO Electronic Instrument Co.
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 13.5 x 7.5 x 8.5 inch / 343 x 191 x 216 mm
Notes Power Amp, mono, with PreAmp power output. Sams photofact set 492 folder 12 date 7-60 features the Electronic Instrument models HF-22 and HF-35 as the same schematic.
Source of data -- Collector info (Sammler)

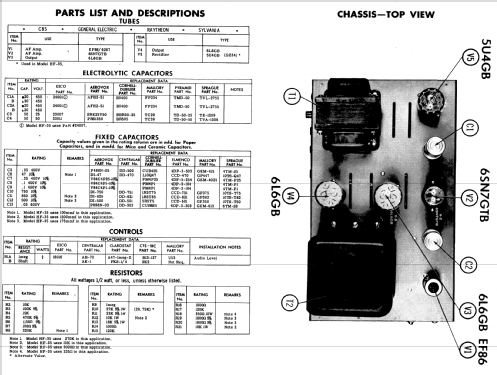

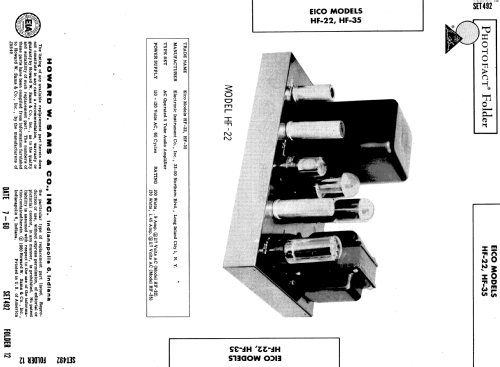

Mentioned in Photofact Folder, Howard W. SAMS (Set 492 folder 12 date 7-60)
Literature/Schematics (1) -- Schematic

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
