TV-FM Sweep /Marker Generator 369 USA
EICO (Electronic Instrument Co.Inc.) Brooklyn
- Country
- United States of America (USA)
- Manufacturer / Brand
- EICO (Electronic Instrument Co.Inc.) Brooklyn
- Year
- 1965 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 133802
Eico 369 Front View #1

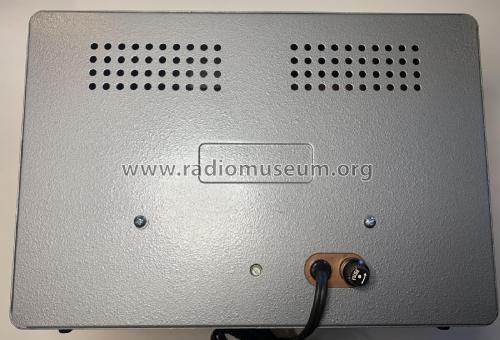

Eico 369 Rear View
Eico 369 Front View #2
aus ebay, #380732817051, Verkäufer sx28
aus ebay, #380732817051, Verkäufer sx28
aus ebay, #380732817051, Verkäufer sx28
aus ebay, #380732817051, Verkäufer sx28
aus ebay, #380732817051, Verkäufer sx28
Front
innen
innen

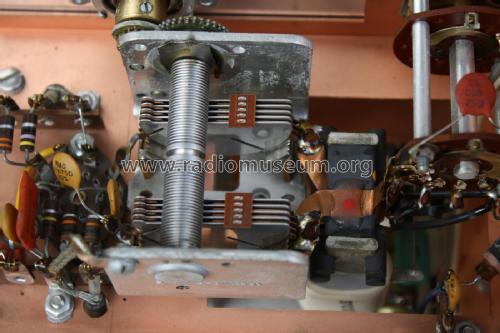

innen drehko
innen drehko
innen unten
innen untern
innen seite
innen seite
innen deteil
innen deteil
innen deteil
Image copied from Google Images
Detail of crystal holder socket
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: TV-FM Sweep /Marker Generator 369 [USA] - EICO Electronic Instrument Co.
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 12.5 x 8.5 x 7 inch / 318 x 216 x 178 mm
- Notes
- Ranges: 75-220mc / 36-95mc / 16-42mc / 6-16mc / 3-7,5mc
Impedanz: 50Ω
Sweep: 20mc.
- Net weight (2.2 lb = 1 kg)
- 0.5 kg / 1 lb 1.6 oz (1.101 lb)
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Willi Ribbe. See "Data change" for further contributors.
