TV-FM Sweep Signal Generator 360

• Country
• United States of America (USA)

• Manufacturer / Brand
• EICO (Electronic Instrument Co.Inc.) Brooklyn

• Year
• 1950

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 133632

• Picture

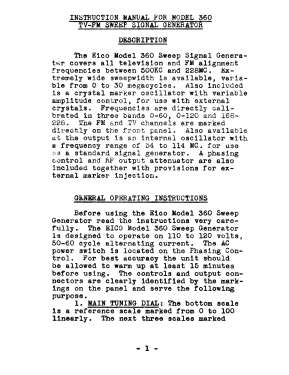

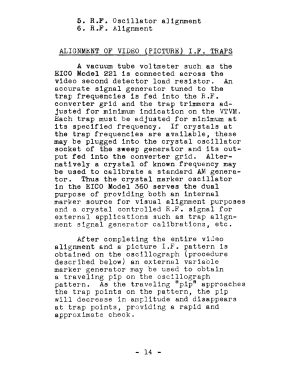

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 7193 6C4 6J5 6J5 6X5

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: TV-FM Sweep Signal Generator 360 - EICO Electronic Instrument Co.

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 250 x 200 x 170 mm / 9.8 x 7.9 x 6.7 inch

• Notes
• EICO Model 360 Sweep Signal Generator covers all television and FM alignment frequencies between 500 kc and 228 Mc. Extemely wide sweep width is available, variable from 0 to 30 MC. 3 bands: 0-60, 0-120 and 168-228 MC.

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Source of data
• -- Schematic

• Author
• Model page created by Willi Ribbe. See "Data change" for further contributors.
