FM Multiplex Generator 342

FM Multiplex Generator 342; EICO Electronic (ID = 537656) Equipment
Use red slider bar for more.
FM Multiplex Generator 342; EICO Electronic (ID = 537656) Equipment
EICO Electronic: FM Multiplex Generator 342 [Equipment] ID = 537656 259x73
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM Multiplex Generator 342, EICO (Electronic Instrument Co.Inc.) Brooklyn:
120349884498/ Pic. just as type proof!

Country:  United States of America (USA)
Manufacturer / Brand:  EICO (Electronic Instrument Co.Inc.) Brooklyn
Year: 1970 ?? Category: Service- or Lab Equipment
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: FM Multiplex Generator 342 - EICO Electronic Instrument Co.
Material Metal case
Shape Tablemodel, with any shape - general.

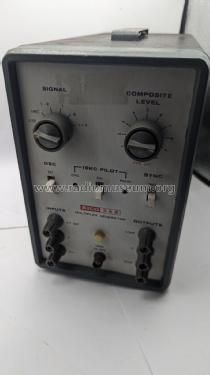

Notes Eico 342 FM Multiplex Generator;
Controls for testing a radio MPX stereo decoder, 19 KHz test signal etc., 100 MHz FM MPX RF out, internal or external modulation, internal or external oscillator in, RCA stereo inputs, 70 W power consumption.
Collectors' prices
Source of data -- Collector info (Sammler)

Model page created by a member from A. See "Data change" for further contributors.
