- Country
- United States of America (USA)
- Manufacturer / Brand
- Eilen Radio Laboratories; New York (NY)
- Year
- 1936
- Category
- Amateur-Receiver (amateur bands, may include broadcast bands)
- Radiomuseum.org ID
- 265350

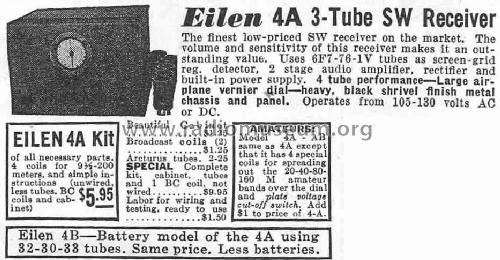

Short Wave Craft March 1936 page 681
- Number of Tubes
- 3
- Main principle
- TRF with regeneration; 2 AF stage(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- AC/DC-set / 105-130 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: 4A-AB - Eilen Radio Laboratories; New
- Shape
- Tablemodel, low profile (big size).
- Notes
-
The Eilen Radio 4A-AB is the Amateur Band version of the model 4A. It covers the 20, 40, 80, and 160 meter amateur bands and has a plate voltage cut-off switch. It was available as a kit or factory wired.
- Price in first year of sale
- 6.95 USD
- Mentioned in
- Short Wave Craft March 1936 page 681.
- Author
- Model page created by Wayne Childress. See "Data change" for further contributors.
