219U

219U; EKA; Budapest (ID = 184703) Radio

219U; EKA; Budapest (ID = 2638923) Radio
219U; EKA; Budapest (ID = 213407) Radio 219U; EKA; Budapest (ID = 1481057) Radio

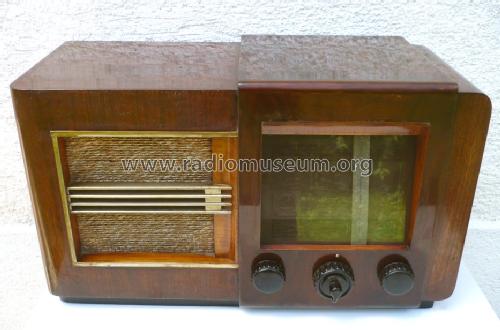

219U; EKA; Budapest (ID = 1481058) Radio 219U; EKA; Budapest (ID = 2243685) Radio
Use red slider bar for more.
219U; EKA; Budapest (ID = 213407) Radio

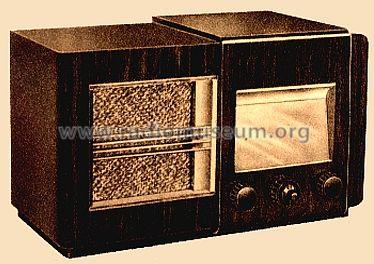

EKA; Budapest: 219U [Radio] ID = 213407 374x264
Select picture or schematic to display from thumbnails on the right and click for download.
For model 219U, EKA; Budapest

Country:  Hungary
Manufacturer / Brand:  EKA; Budapest
alternative name

Engel Károly Elektromos Szerelésianyagok és Készülékek Gyára, Budapest.
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: CF7 CL4 CY2
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110; 150; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 219U - EKA; Budapest
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 535 x 315 x 235 mm / 21.1 x 12.4 x 9.3 inch
Mentioned in Rádiókészülékek Kapcsolásai 1936-56

Model page created by Gabriel Toth. See "Data change" for further contributors.



All listed radios etc. from EKA; Budapest
Here you find 117 models, 116 with images and 35 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
