• Country
• Hungary

• Manufacturer / Brand
• EKA; Budapest

• Year
• 1940–1942

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 165923

• • alternative name: Engel Károly Elektromos Szerelésianyagok és Készülékek Gyára, Budapest.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• AZ1 AZ4

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 120; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Wooden case

• from Radiomuseum.org

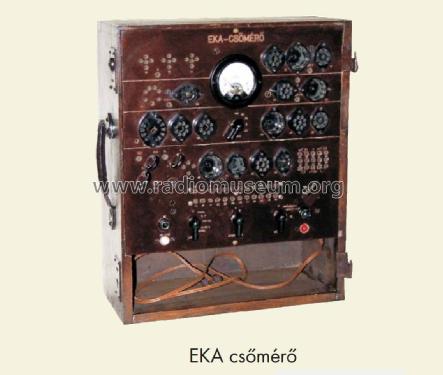

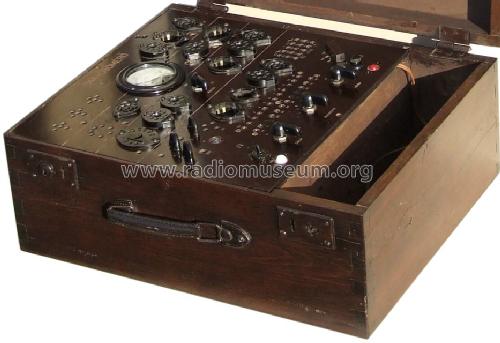

• Model: EKA-Tungsram csömérö/ Tube Meter - EKA; Budapest

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 460 x 200 x 370 mm / 18.1 x 7.9 x 14.6 inch

• Notes
• Tungsram construction, made in EKA.

• Literature/Schematics (1)
• Tungsram Tanácsadó 1942, Budapest.

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
