C511

C511; Ekco, E.K.Cole Ltd.; (ID = 1258284) Radio
C511; Ekco, E.K.Cole Ltd.; (ID = 1108654) Radio C511; Ekco, E.K.Cole Ltd.; (ID = 482189) Radio
C511; Ekco, E.K.Cole Ltd.; (ID = 1108655) Radio C511; Ekco, E.K.Cole Ltd.; (ID = 1108656) Radio
C511; Ekco, E.K.Cole Ltd.; (ID = 1108659) Radio C511; Ekco, E.K.Cole Ltd.; (ID = 1273015) Radio
Use red slider bar for more.
C511; Ekco, E.K.Cole Ltd.; (ID = 1108654) Radio
Ekco, E.K.Cole Ltd.;: C511 [Radio] ID = 1108654 591x900
Select picture or schematic to display from thumbnails on the right and click for download.
For model C511, Ekco, E.K.Cole Ltd.; Southend-on-Sea

Country:  Great Britain (UK)
Manufacturer / Brand:  Ekco, E.K.Cole Ltd.; Southend-on-Sea
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH3 EF9 EBC3 EL3 AZ1
Main principle Superheterodyne (common); ZF/IF 126 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: C511 - Ekco, E.K.Cole Ltd.; Southend-
Material Wooden case

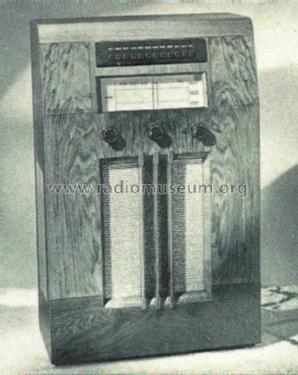

Shape Console with Push Buttons.
Notes Pushbutton motor tuning with AFC. Same chassis employed in table model PB510. Price GBP17 17sh.
Mentioned in Technisch- Commercieel - Radio Vademecum Staleman
Literature/Schematics (1) Trader sheet 684 (for PB510).

Model page created by Folkert Rothe. See "Data change" for further contributors.
