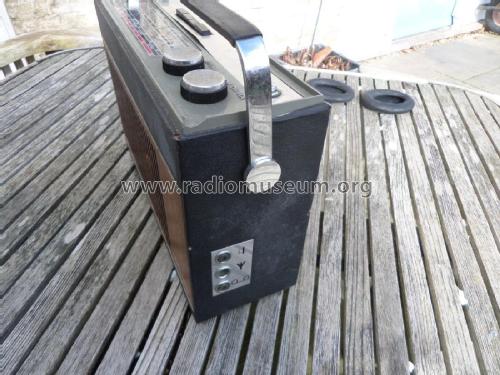

P1141

Ferranti, GB

  • Year
  • 1965 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 226479

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 9
  • Main principle
  • Superheterodyne (common); ZF/IF 470/10700 kHz; 3 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Storage and/or dry batteries / 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: P1141 - Ferranti, GB
  • Source of data
  • -- Original-techn. papers.
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Jose Casas-Avalos. See "Data change" for further contributors.
