U129

U129; Ekco, E.K.Cole Ltd.; (ID = 852804) Radio
Use red slider bar for more.
U129; Ekco, E.K.Cole Ltd.; (ID = 852804) Radio

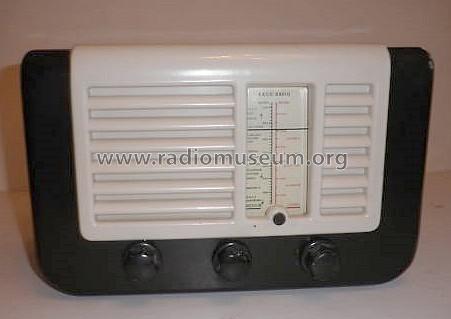

Ekco, E.K.Cole Ltd.;: U129 [Radio] ID = 852804 451x319
Select picture or schematic to display from thumbnails on the right and click for download.
For model U129, Ekco, E.K.Cole Ltd.; Southend-on-Sea

Country:  Great Britain (UK)
Manufacturer / Brand:  Ekco, E.K.Cole Ltd.; Southend-on-Sea
Year: 1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UF41 UBC41 UL41 UY41
Main principle Superheterodyne (common); ZF/IF 460 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: U129 - Ekco, E.K.Cole Ltd.; Southend-
Material Wooden case
Shape Tablemodel, low profile (big size).
Mentioned in -- Original-techn. papers.

Model page created by Peter Hoddow. See "Data change" for further contributors.
