U241

U241 ; Ekco, E.K.Cole Ltd.; (ID = 803771) Radio U241 ; Ekco, E.K.Cole Ltd.; (ID = 803772) Radio
U241 ; Ekco, E.K.Cole Ltd.; (ID = 803773) Radio U241 ; Ekco, E.K.Cole Ltd.; (ID = 803774) Radio

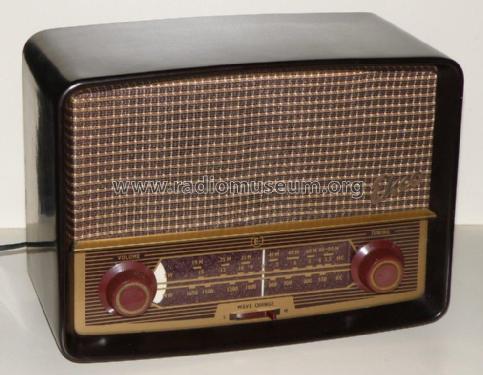

U241 ; Ekco, E.K.Cole Ltd.; (ID = 1839610) Radio U241 ; Ekco, E.K.Cole Ltd.; (ID = 1839611) Radio
U241 ; Ekco, E.K.Cole Ltd.; (ID = 1839612) Radio U241 ; Ekco, E.K.Cole Ltd.; (ID = 1839613) Radio
Use red slider bar for more.
U241 ; Ekco, E.K.Cole Ltd.; (ID = 803771) Radio
Ekco, E.K.Cole Ltd.;: U241 [Radio] ID = 803771 497x342
Select picture or schematic to display from thumbnails on the right and click for download.
For model U241, Ekco, E.K.Cole Ltd.; Southend-on-Sea:
My own collection

Country:  Great Britain (UK)
Manufacturer / Brand:  Ekco, E.K.Cole Ltd.; Southend-on-Sea
Year: 1955 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UF41 UBC41 UL41 UY41
Main principle Superheterodyne (common)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 100-135; 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: U241 - Ekco, E.K.Cole Ltd.; Southend-
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 330 x 250 x 160 mm / 13 x 9.8 x 6.3 inch
Net weight (2.2 lb = 1 kg) 3.9 kg / 8 lb 9.4 oz (8.59 lb)

Model page created by Antonio Dias Rodrigues. See "Data change" for further contributors.
