Phono-Vorverstärker PV1

Phono-Vorverstärker PV1; Elac Electroacustic (ID = 12346) Ampl/Mixer

Phono-Vorverstärker PV1; Elac Electroacustic (ID = 466851) Ampl/Mixer

Phono-Vorverstärker PV1; Elac Electroacustic (ID = 1524250) Ampl/Mixer
Phono-Vorverstärker PV1; Elac Electroacustic (ID = 1973276) Ampl/Mixer Phono-Vorverstärker PV1; Elac Electroacustic (ID = 1502828) Ampl/Mixer
Phono-Vorverstärker PV1; Elac Electroacustic (ID = 314646) Ampl/Mixer Phono-Vorverstärker PV1; Elac Electroacustic (ID = 735310) Ampl/Mixer
Phono-Vorverstärker PV1; Elac Electroacustic (ID = 735321) Ampl/Mixer Phono-Vorverstärker PV1; Elac Electroacustic (ID = 1502829) Ampl/Mixer
Phono-Vorverstärker PV1; Elac Electroacustic (ID = 1502831) Ampl/Mixer Phono-Vorverstärker PV1; Elac Electroacustic (ID = 1973277) Ampl/Mixer
Phono-Vorverstärker PV1; Elac Electroacustic (ID = 1973278) Ampl/Mixer Phono-Vorverstärker PV1; Elac Electroacustic (ID = 1973279) Ampl/Mixer
Use red slider bar for more.

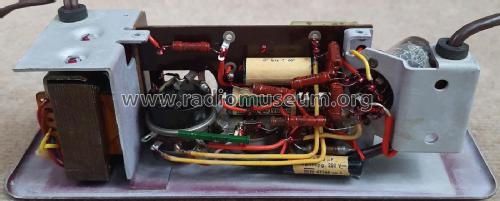

Phono-Vorverstärker PV1; Elac Electroacustic (ID = 1973276) Ampl/Mixer
Elac Electroacustic: Phono-Vorverstärker PV1 [Ampl/Mixer] ID = 1973276 881x2100
Select picture or schematic to display from thumbnails on the right and click for download.
For model Phono-Vorverstärker PV1, Elac Electroacustic GmbH; Kiel

Country:  Germany
Manufacturer / Brand:  Elac Electroacustic GmbH; Kiel
Year: 1955–1961 Category: Audio Amplifier or -mixer
Valves / Tubes 1: ECC83
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Phono-Vorverstärker PV1 - Elac Electroacustic GmbH; Kiel
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 74 x 75 x 214 mm / 2.9 x 3 x 8.4 inch
Notes Vorverstärker mit frequenzunabhängiger Lautstärkeregelung, getrennt regelbare Entzerrung für Tiefen und Höhen. Speziell für Miraphon 11M und Miracord 8M.
Net weight (2.2 lb = 1 kg) 1.1 kg / 2 lb 6.8 oz (2.423 lb)
Price in first year of sale 99.00 DM
Collectors' prices
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1955/56 / Radiokatalog Band 2, Ernst Erb
