• Country
• Germany

• Manufacturer / Brand
• Elcophon Gerätebau, Ing. G. Colb; Nürnberg

• Year
• 1949/1950

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 14316

• • Brand: Colb, Ing. G.; Nürnberg NO

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH4 EF11 EB4 EF12 EL2 EZ11

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org

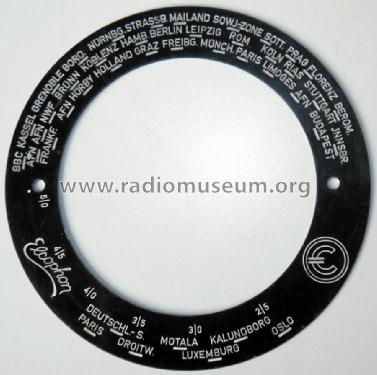

• Model: A/By49 [var 1] - Elcophon Gerätebau, Ing. G.

• Dimensions (WHD)
• 290 x 160 x 200 mm / 11.4 x 6.3 x 7.9 inch

• Notes

• Geräteknöpfe sind auch in weißer Ausführung verbaut worden.
  Gewichtsangabe ohne externes Netzteil.

• Net weight (2.2 lb = 1 kg)
• 5.5 kg / 12 lb 1.8 oz (12.115 lb)

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Lange-Nowisch
