Inconnu - Unknown 1

Inconnu - Unknown 1 ; Elcosa, Électro- (ID = 1389652) Radio Inconnu - Unknown 1 ; Elcosa, Électro- (ID = 1389653) Radio

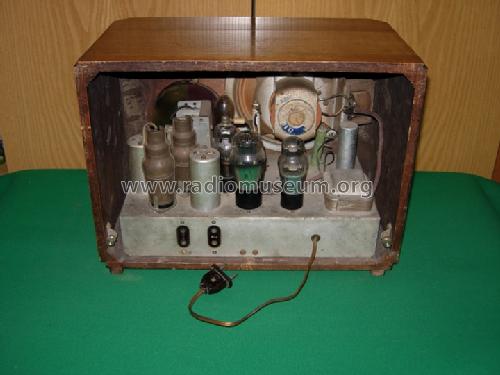

Inconnu - Unknown 1 ; Elcosa, Électro- (ID = 1389654) Radio Inconnu - Unknown 1 ; Elcosa, Électro- (ID = 1389968) Radio
Use red slider bar for more.

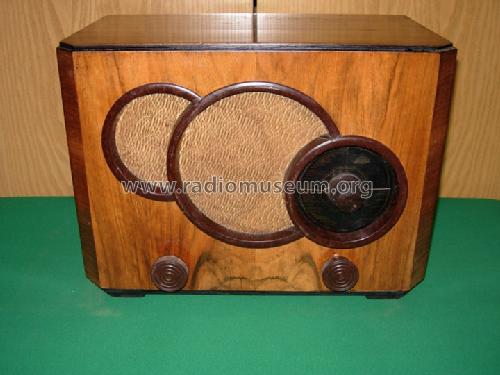

Inconnu - Unknown 1 ; Elcosa, Électro- (ID = 1389652) Radio
Elcosa, Électro-: Inconnu - Unknown 1 [Radio] ID = 1389652 720x540
Select picture or schematic to display from thumbnails on the right and click for download.
For model Inconnu - Unknown 1, Elcosa, Électro-Constructions, Meyer et Kapp; Graffenstaden, Strasbourg

Country:  France
Manufacturer / Brand:  Elcosa, Électro-Constructions, Meyer et Kapp; Graffenstaden, Strasbourg
Year: 1936 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 6D6 6B7 43 25Z5
Main principle Super-Heterodyne (Super in general)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 25 cm = 9.8 inch
Power out
from Radiomuseum.org Model: Inconnu - Unknown 1 - Elcosa, Électro-Constructions,
Material Wooden case
Shape Tablemodel, with any shape - general.
Mentioned in Le grand livre de la TSF (Doctsf Ref 8968)

Model page created by Lorenzo Guadagnucci. See "Data change" for further contributors.



All listed radios etc. from Elcosa, Électro-Constructions, Meyer et Kapp; Graffenstaden, Strasbourg
Here you find 30 models, 22 with images and 4 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
