Tourist 105

Tourist 105; Electric Audio (ID = 764139) Radio

Tourist 105; Electric Audio (ID = 764140) Radio
Tourist 105; Electric Audio (ID = 768879) Radio Tourist 105; Electric Audio (ID = 768881) Radio
Tourist 105; Electric Audio (ID = 768883) Radio Tourist 105; Electric Audio (ID = 2018828) Radio
Tourist 105; Electric Audio (ID = 2018829) Radio Tourist 105; Electric Audio (ID = 2018830) Radio
Tourist 105; Electric Audio (ID = 2018831) Radio Tourist 105; Electric Audio (ID = 2018836) Radio
Tourist 105; Electric Audio (ID = 2602354) Radio Tourist 105; Electric Audio (ID = 2602355) Radio
Use red slider bar for more.
Tourist 105; Electric Audio (ID = 768879) Radio
Electric Audio: Tourist 105 [Radio] ID = 768879 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tourist 105, Electric Audio Reproducers (EAR); London, Isleworth:

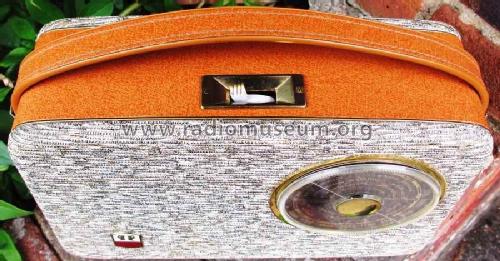

The EAR Tourist 7 transistor MW/LW portable radio. This radio was built by Perdio (label inside) and apart from its cover is identical to their PR36 Fanfare model.

Country:  Great Britain (UK)
Manufacturer / Brand:  Electric Audio Reproducers (EAR); London, Isleworth
Year: 1964 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: OC44 OC45 OC45 OC71 OC81D OC81 OC81
Main principle Superheterodyne (common); ZF/IF 470 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: Tourist 105 - Electric Audio Reproducers EAR
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 250 x 170 x 90 mm / 9.8 x 6.7 x 3.5 inch
Notes

Portable transistor radio fitted with an aerial socket. Battery type PP9. Built by Perdio Electronics Ltd. and very similar to the Perdio PR36 Fanfare model.

Net weight (2.2 lb = 1 kg) 1.2 kg / 2 lb 10.3 oz (2.643 lb)
Source of data -- Schematic
Circuit diagram reference Radio and TV Servicing books (R&TVS) book

Model page created by Keith Staines. See "Data change" for further contributors.
