Viewmatic E2319

Viewmatic E2319; Electrice Brand of (ID = 2093976) Television
Use red slider bar for more.
Viewmatic E2319; Electrice Brand of (ID = 2093976) Television

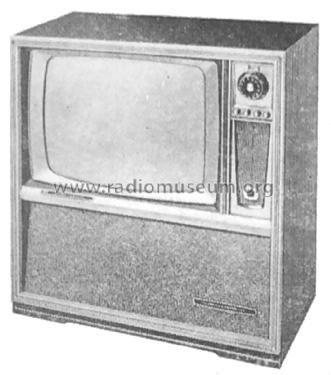

Electrice Brand of: Viewmatic E2319 [Television] ID = 2093976 1400x1584
Select picture or schematic to display from thumbnails on the right and click for download.
For model Viewmatic E2319, Electrice (Brand of EMAIL and EMMCO); Sydney, NSW

Country:  Australia
Manufacturer / Brand:  Electrice (Brand of EMAIL and EMMCO); Sydney, NSW
Year: 1960 Category: Television Receiver (TV) or Monitor
Valves / Tubes 22: 6ES8 6EA8 6BZ6 6BZ6 6CB6 6CB6 6AW8A 6AQ5 6AU6 6AU6 6AL5 6AV6 6AQ5 6U8 6CG7 6EM5 6CG7 6DQ6A 6AU4GTA 1B3GT 5AS4 23MP4
Semiconductors (the count is only for transistors) GD3 GD8 GD8
Main principle Superhet with RF-stage
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 190-260 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Viewmatic E2319 - Electrice Brand of EMAIL and
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 31 x 33.5 x 17 inch / 787 x 851 x 432 mm
Notes

Rebadged version of AWA 247. Apart from some minor cosmetic differences, this model is otherwise identical.

Cabinet finishes available in Walnut, Maple & Mahogany.

Price in first year of sale 240.45 AUS £
Literature/Schematics (1) - - Manufacturers Literature (Electrice Factory Supervised Service)
Literature/Schematics (2) J.R. Publications Television Service Handbook (L.J. Series Vol. 1, 1962 & 1967, Page A92.)

Model page created by Martin Kent. See "Data change" for further contributors.
