• Year
  • 1954 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 304070

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Details
  • Record Player (perh.Changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 117 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 10 W (14 W max.)
  • Material
  • Wooden case
  • from Radiomuseum.org

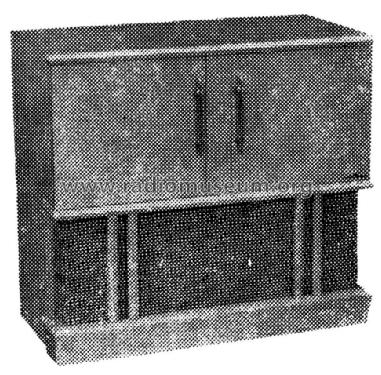

  • Model: Crescendo - Electrohome Dominion
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes
  • The Elecrohome model Crescendo is an 8-tube console radio with built in phonograph. With bass and treble controls, and magnetic pickup. For 25 or 60 Hz depending on nameplate rating.

  • Author
  • Model page created by Tom Seeger. See "Data change" for further contributors.
