• Country
• Canada

• Manufacturer / Brand
• Eaton Co. Ltd., The T. (Viking); Toronto

• Year
• 1957 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 231627

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 6BA6 6BE6 6BA6 6AV6 6E5 12AX7 12AT7 6V6GT 6V6GT 5Y3GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 8 inch = 20.3 cm

• Power out
• 10 W (15 W max.)

• Material
• Wooden case

• from Radiomuseum.org

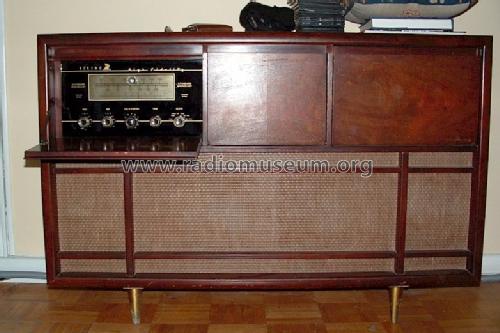

• Model: Viking RC-308 - Eaton Co. Ltd., The T. Viking;

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 45 x 30 x 18 inch / 1143 x 762 x 457 mm

• Notes

• The Viking model RC-308 is a 10-tube console radio with built in record player. With tuning eye tube. Made by Electrohome Ltd for the T. Eaton Co.

• Net weight (2.2 lb = 1 kg)
• 54 lb (54 lb 0 oz) / 24.516 kg

• Price in first year of sale
• 546.00 CDN

• Literature/Schematics (1)
• Radio College of Canada (RCC) (1957-1958 Supplement 42)

• Author
• Model page created by John Allen. See "Data change" for further contributors.
