- Country
- Germany
- Manufacturer / Brand
- Electrola GmbH (falsch: Elektrola); Nowawes und Berlin
- Year
- 1931/1932
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 125880

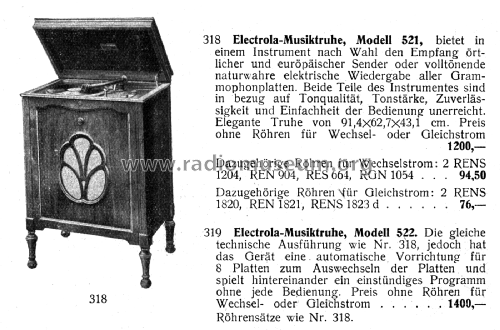

Katalog Prohaska 1931/32 S.59
Katalog Prohaska 1931/32 S.59
- Number of Tubes
- 5
- Main principle
- TRF without regeneration
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- -Loudspeaker incorporated, but system not known.
- Material
- Wooden case
- from Radiomuseum.org
- Model: 521W - Electrola GmbH falsch:
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 627 x 914 x 431 mm / 24.7 x 36 x 17 inch
- Notes
-
Electrola Musiktruhe Modell 521, bietet in einem Instrument nach Wahl den Empfang örtlicher und europäischer Sender oder volltönende naturwahre elektrische Wiedergabe aller Grammophonplatten.
Preis ohne Röhren, Röhrensatz 94,50 RM
- Price in first year of sale
- 1,200.00 RM
- Source of data
- -- Original prospect or advert
- Mentioned in
- Katalog Radio-Zentrale Prohaska 1931/32 (S.59)
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
