• Year
  • 1975 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 77908

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 12
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 220; Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 2.5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

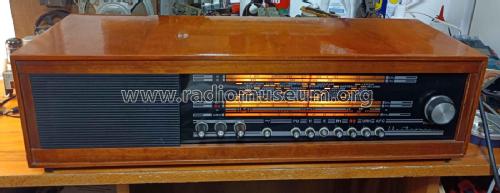

  • Model: Atlantic S732TE - Electronica; București -
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 666 x 187 x 220 mm / 26.2 x 7.4 x 8.7 inch
  • Notes
  • 2.KW Bereiche, UKW 65-73 MHz, getrennte Höhen und Tiefen-Regler
  • Net weight (2.2 lb = 1 kg)
  • 5.5 kg / 12 lb 1.8 oz (12.115 lb)
  • External source of data
  • eigenes Gerät
