• Country
• Romania

• Manufacturer / Brand
• Electronica; București - Bucharest

• Year
• 1968 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 364323

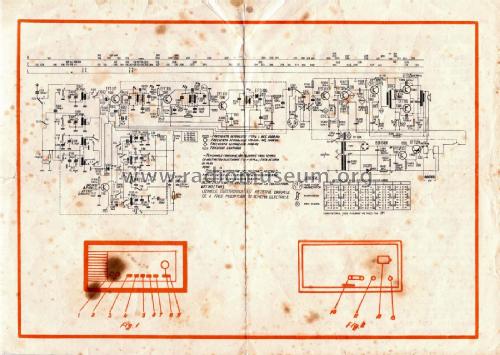

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• EFT317 or. AF126 or. AF125 EFT317 EFT319 EFT319 EFT321 EFT323 EFT323 or. EFT322 EFT125 or. AC180 EFT125 or. AC180 EFT321 EFT124 or. AC180 B30C450

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Line / Batteries (any type) / 110; 220 / 6 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Mangalia 2 S682TA - Electronica; București -

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 530 x 215 x 175 mm / 20.9 x 8.5 x 6.9 inch

• Notes

• Eingang für Plattenspieler oder Tonbandgerät

  3 Dioden EFD106 MA2 DR370



• Net weight (2.2 lb = 1 kg)
• 4.5 kg / 9 lb 14.6 oz (9.912 lb)

• Mentioned in

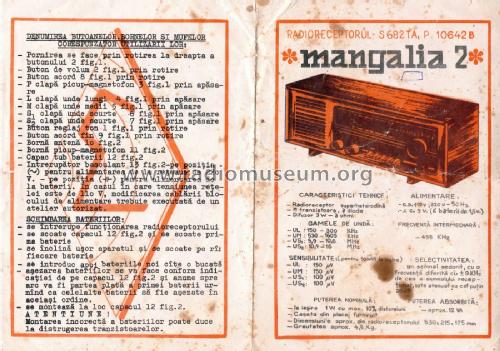

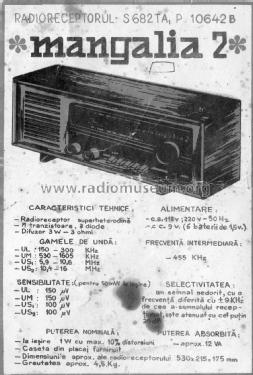

• - - Manufacturers Literature

• Author
• Model page created by Wolfgang Müllner. See "Data change" for further contributors.
