414-1; Electrosound Pty Ltd (ID = 2376790) Radio
Electrosound Pty Ltd: 414-1 [Radio] ID = 2376790 1400x949
Select picture or schematic to display from thumbnails on the right and click for download.

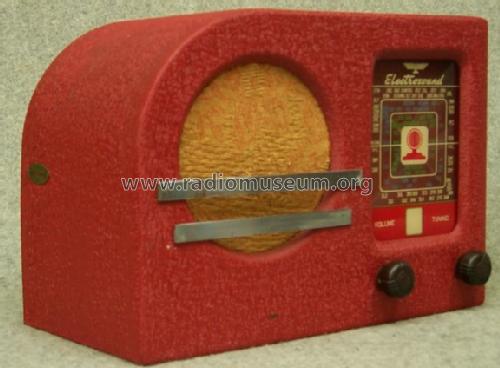

For model 414-1, Electrosound Pty Ltd, Sydney

Country:  Australia
Manufacturer / Brand:  Electrosound Pty Ltd, Sydney
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 6SA7GT 6G8G 6V6GT 5Y3GT
Main principle Superheterodyne (common); ZF/IF 455 kHz; 1 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 414-1 - Electrosound Pty Ltd, Sydney
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Circuit diagram reference Australian Official Radio Service Manual Vol. VI

Model page created by Stuart Irwin. See "Data change" for further contributors.



All listed radios etc. from Electrosound Pty Ltd, Sydney
Here you find 66 models, 7 with images and 17 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
