GC5001LCR

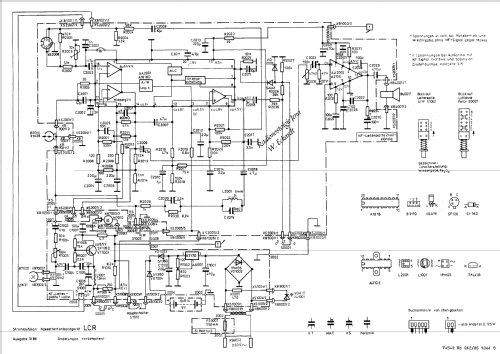

GC5001LCR; Elektronik Gera, VEB (ID = 343172) R-Player
GC5001LCR; Elektronik Gera, VEB (ID = 2107495) R-Player GC5001LCR; Elektronik Gera, VEB (ID = 1613697) R-Player
GC5001LCR; Elektronik Gera, VEB (ID = 343159) R-Player GC5001LCR; Elektronik Gera, VEB (ID = 310284) R-Player
GC5001LCR; Elektronik Gera, VEB (ID = 651145) R-Player GC5001LCR; Elektronik Gera, VEB (ID = 1419652) R-Player
GC5001LCR; Elektronik Gera, VEB (ID = 1457901) R-Player GC5001LCR; Elektronik Gera, VEB (ID = 1457931) R-Player
GC5001LCR; Elektronik Gera, VEB (ID = 1632861) R-Player
Use red slider bar for more.
GC5001LCR; Elektronik Gera, VEB (ID = 2107495) R-Player
Elektronik Gera, VEB: GC5001LCR [R-Player] ID = 2107495 1368x890
Select picture or schematic to display from thumbnails on the right and click for download.
For model GC5001LCR, Elektronik Gera, VEB, (Ostd.) (D)

Country:  Germany
Manufacturer / Brand:  Elektronik Gera, VEB, (Ostd.) (D)
Year: 1986/1987 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 3:
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220 / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: GC5001LCR - Elektronik Gera, VEB, Ostd. D
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (usable also without mains)
Dimensions (WHD) 200 x 67 x 300 mm / 7.9 x 2.6 x 11.8 inch
Notes Nachfolger des GC5000LCR (LCR steht für "Lobensteiner Cassettenrekorder"), Bandsortenwahl, Bandzählwerk, eingebautes Mikrofon, Lizenz-Laufwerk, elektronische Motorregleung, Mithören während des Spulens möglich, Kopfhöreranschluss. Bandendabschaltung. 3 IC. Auch vereinfachte Variante ohne Mikrofon im Handel.
Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)
Price in first year of sale 498.00 DM
Collectors' prices
Source of data -- Collector info (Sammler)
Mentioned in -- Original-techn. papers.

Model page created by Wolfgang Lill. See "Data change" for further contributors.
