Geracord GC6032

• Country
• Germany

• Manufacturer / Brand
• Elektronik Gera, VEB, (Ostd.) (D)

• Year
• 1985

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 219031

• Picture

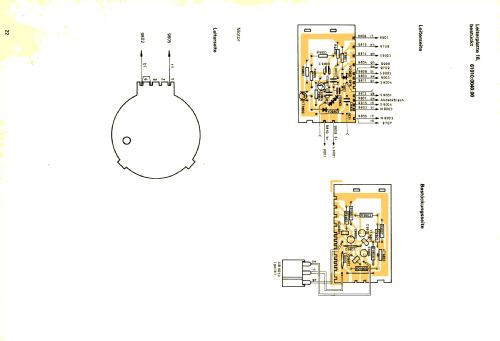

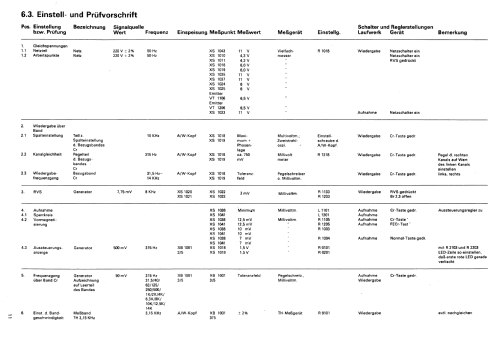

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 26

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Geracord GC6032 - Elektronik Gera, VEB, Ostd. D

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 394 x 130 x 271 mm / 15.5 x 5.1 x 10.7 inch

• Notes
• Das Kassettengerät Geracord GC6032 entspricht in seiner elektrischen Konzeption dem GC6031, ist aber in der Gehäusegestaltung dem Receiver SR2410 angepasst. Das Gerät hat Handaussteuerung, ein Rauschminderungssystem (RMS) und enthält 7 ICs und 23 LEDs.

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Price in first year of sale
• 1,290.00 Mark

• Source of data
• -- Original-techn. papers.

• Mentioned in
• Service-DVD Funkverlag B. Hein (Sortimentskatalog Elektroakustik (DDR, 1987))

• Author
• Model page created by Wolfgang MICHAEL. See "Data change" for further contributors.
