HDG 222

HDG 222; Elektronik Gera, VEB (ID = 466239) R-Player

HDG 222; Elektronik Gera, VEB (ID = 466240) R-Player
HDG 222; Elektronik Gera, VEB (ID = 427597) R-Player HDG 222; Elektronik Gera, VEB (ID = 415977) R-Player
HDG 222; Elektronik Gera, VEB (ID = 427596) R-Player HDG 222; Elektronik Gera, VEB (ID = 1749550) R-Player
Use red slider bar for more.

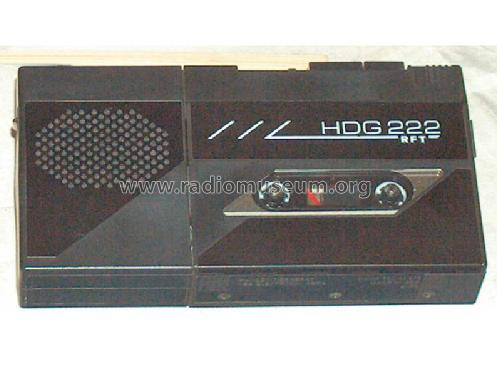

HDG 222; Elektronik Gera, VEB (ID = 427597) R-Player
Elektronik Gera, VEB: HDG 222 [R-Player] ID = 427597 795x599
Select picture or schematic to display from thumbnails on the right and click for download.
For model HDG 222, Elektronik Gera, VEB, (Ostd.) (D)

Country:  Germany
Manufacturer / Brand:  Elektronik Gera, VEB, (Ostd.) (D)
Year: 1989 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 5:
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Line / Storage batteries (perhaps also batteries) / 220 / 4x 1,2 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.15 W (unknown quality)
from Radiomuseum.org Model: HDG 222 - Elektronik Gera, VEB, Ostd. D
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 167 x 30 x 87 mm / 6.6 x 1.2 x 3.4 inch
Notes Bandgeschwindigkeit des Kassettenlaufwerkes 2,38 cm/s. Start-Stop-Schalter, Kopfhörer, Anschlüsse für Mikro und Telefonadapter TA23, Netzteil NLG20. Gerät wurde hauptsächlich für Stasi bzw. dann NASI bzw. für befreundete Geheimdienste produziert. Vier Schaltkreise, A1818, A210E, B861D und UL1901.
Net weight (2.2 lb = 1 kg) 0.4 kg / 0 lb 14.1 oz (0.881 lb)
Source of data -- Original-techn. papers.

Model page created by Wolfgang Lill. See "Data change" for further contributors.
