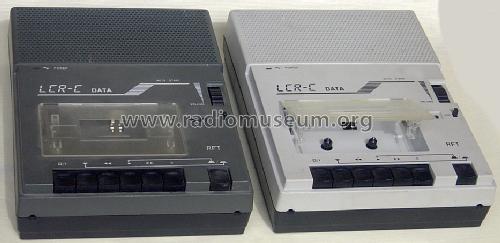

LCR-C Data; Elektronik Gera, VEB (ID = 343289) R-Player
Elektronik Gera, VEB: LCR-C Data [R-Player] ID = 343289 933x454
Select picture or schematic to display from thumbnails on the right and click for download.
For model LCR-C Data, Elektronik Gera, VEB, (Ostd.) (D)

Country:  Germany
Manufacturer / Brand:  Elektronik Gera, VEB, (Ostd.) (D)
Year: 1987/1988 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 3: SC236 SF826 SF126 A1818D A210E B3170
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: LCR-C Data - Elektronik Gera, VEB, Ostd. D
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 200 x 65 x 265 mm / 7.9 x 2.6 x 10.4 inch
Notes Spezielle Version des LCR für Heimcomputer (z.B. KC85, KC87, Z1013) als Datenspeicher. Statt Lautsprecher piezoelektr. Schallgeber, sonst auch als Audio-Rekorder nutzbar. 3 IC. Kein Tragegriff.
Net weight (2.2 lb = 1 kg) 1.4 kg / 3 lb 1.3 oz (3.084 lb)
Price in first year of sale 550.00 Mark
Collectors' prices
Source of data -- Original-techn. papers.
Mentioned in Die Geschichte der Fonoindustrie der DDR (B.4)
Literature/Schematics (1) Sortimentskatalog Elektroakustik (DDR, 1989)

Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
