Sonoreta (Sonoretta) RV-12

Sonoreta RV-12; Elektra , Praha (ID = 169958) Kit

Sonoreta RV-12; Elektra , Praha (ID = 169959) Kit
Sonoreta RV-12; Elektra , Praha (ID = 163727) Kit Sonoreta RV-12; Elektra , Praha (ID = 165314) Kit
Sonoreta RV-12; Elektra , Praha (ID = 476604) Kit Sonoreta RV-12; Elektra , Praha (ID = 476601) Kit

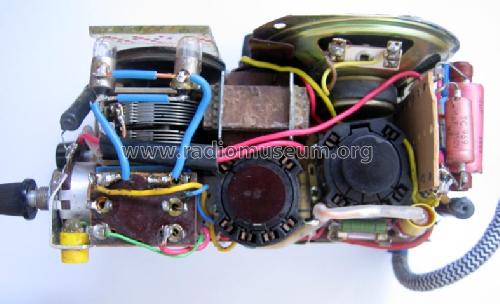

Sonoreta RV-12; Elektra , Praha (ID = 476602) Kit Sonoreta RV-12; Elektra , Praha (ID = 476603) Kit
Sonoreta RV-12; Elektra , Praha (ID = 476606) Kit Sonoreta RV-12; Elektra , Praha (ID = 600199) Kit

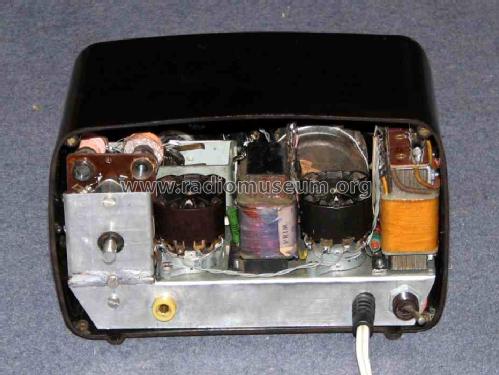

Sonoreta RV-12; Elektra , Praha (ID = 600200) Kit Sonoreta RV-12; Elektra , Praha (ID = 600201) Kit
Use red slider bar for more.
Sonoreta RV-12; Elektra , Praha (ID = 163727) Kit
Elektra , Praha: Sonoreta RV-12 [Kit] ID = 163727 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sonoreta (Sonoretta) RV-12, Elektra , Praha

Country:  Czechoslovakia
Manufacturer / Brand:  Elektra , Praha
Year: 1947–1949 Category: Kit (Parts plus instruction) or building instructions only
Valves / Tubes 2: RV12P2000 RV12P2000
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle TRF with regeneration
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 120/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out 0.75 W (unknown quality)
from Radiomuseum.org Model: Sonoreta RV-12 - Elektra , Praha
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 170 x 110 x 115 mm / 6.7 x 4.3 x 4.5 inch
Notes The Elektra Sonoreta RV-12 (Sonoretta RV-12) is a kit: Bands: SW 17 - 51 m, BC 200 - 500 m. Selenium-Rectifier 2x 200V/30mA 2x 15 tablets diameter 18mm.
Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)
Collectors' prices

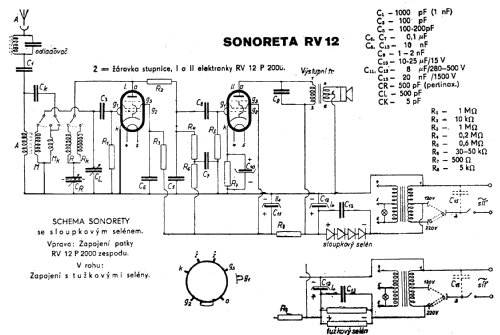

Mentioned in -- Schematic (Radiojournal (CZ))

Model page created by Berthold Bosch † 13.2.19. See "Data change" for further contributors.
