• Year
  • 1951 ?
  • Category
  • Kit (Parts plus instruction) or building instructions only
  • Radiomuseum.org ID
  • 121521

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 452 kHz
  • Tuned circuits
  • 6 AM circuit(s)

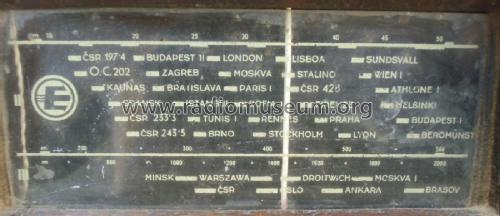

  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 125; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: Super 254E - Elektra, Pražský obchod

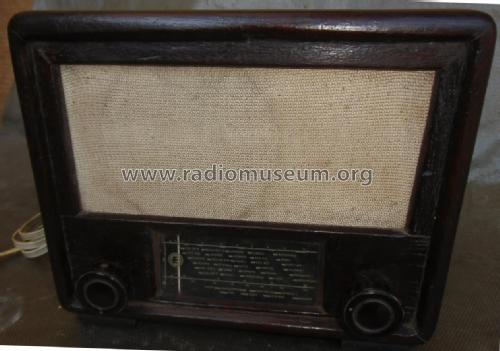

  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • Kurzwelle: 51,5 ... 15,5 m
    Mittelwelle: 522 ... 1622 kHz
    Langwelle: 150 ... 316 kHz

  • Source of data
  • - - Manufacturers Literature
  • Author
  • Model page created by Wolfgang Lill. See "Data change" for further contributors.
