Allegro Z EL3
Elektrit, Wilno
- Country
- Poland
- Manufacturer / Brand
- Elektrit, Wilno
- Year
- 1938/1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 74521

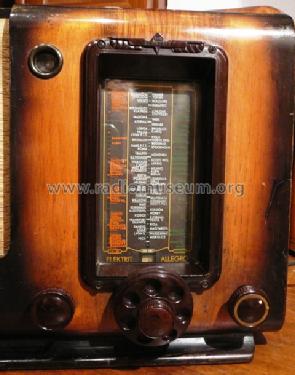

The knobs not original.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superhet, IF regeneration; ZF/IF 128 kHz; 1 AF stage(s); Reflex
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 120-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Allegro Z [EL3] - Elektrit, Wilno
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 515 x 330 x 290 mm / 20.3 x 13 x 11.4 inch
- Notes
- Empfindlichkeit 20 µV (SNR?), Selektivität 70 dB (Bandbreite?), Leistungsaufnahme 40 Watt, 30 Watt bei Sparschaltung.
- Price in first year of sale
- 380.00 ZL
- Source of data
- Zlote Lata Radia, Polen
- Author
- Model page created by Henryk Berezowski. See "Data change" for further contributors.
