Fidelio Z

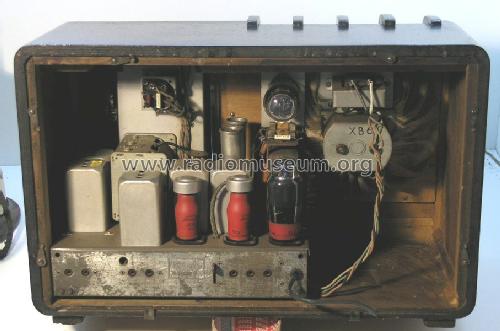

Elektrit, Wilno: Fidelio Z [Radio] ID = 2391309 1200x904
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1938/1939 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 6: EK2 EF9 EBC3 EL3 EM1 AZ1 |
|---|
| Main principle | Super-Heterodyne (Super in general); ZF/IF 128 kHz; 1 AF stage(s) |
|---|---|
| Tuned circuits | 7 AM circuit(s) |
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 120-240 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch |
| Power out | |
| from Radiomuseum.org | Model: Fidelio Z - Elektrit, Wilno |
| Material | Wooden case |
| Shape | Tablemodel, high profile (upright - NOT Cathedral nor decorative). |
| Dimensions (WHD) | 520 x 340 x 260 mm / 20.5 x 13.4 x 10.2 inch |
| Notes | Empfindlichkeit 10 µV, Selektivität 70 dB, Leistungsaufnahme 46 W. |
| Price in first year of sale | 475.00 ZL |
| Collectors' prices | |
| Source of data | Zlote Lata Radia, Polen |
