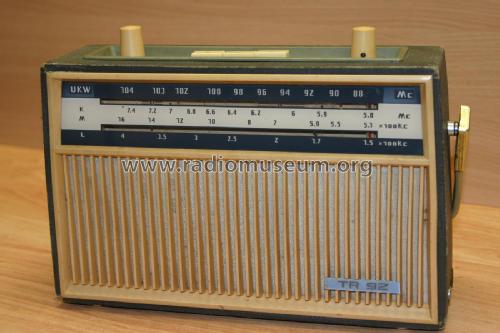

Dorena Koffersuper TR 92 (TR 9Z)

Dorena Koffersuper TR 92 ; Elektroakustik (ID = 2057847) Radio Dorena Koffersuper TR 92 ; Elektroakustik (ID = 2057846) Radio
Dorena Koffersuper TR 92 ; Elektroakustik (ID = 2057848) Radio Dorena Koffersuper TR 92 ; Elektroakustik (ID = 1240314) Radio
Dorena Koffersuper TR 92 ; Elektroakustik (ID = 1240315) Radio Dorena Koffersuper TR 92 ; Elektroakustik (ID = 1240316) Radio
Dorena Koffersuper TR 92 ; Elektroakustik (ID = 1240317) Radio Dorena Koffersuper TR 92 ; Elektroakustik (ID = 1240318) Radio
Dorena Koffersuper TR 92 ; Elektroakustik (ID = 1240319) Radio Dorena Koffersuper TR 92 ; Elektroakustik (ID = 1240321) Radio
Use red slider bar for more.
Dorena Koffersuper TR 92 ; Elektroakustik (ID = 2057847) Radio
Elektroakustik: Dorena Koffersuper TR 92 [Radio] ID = 2057847 1400x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dorena Koffersuper TR 92 (TR 9Z), Elektroakustik Hartmannsdorf, EAH, VEB(K), (Ostd.)

Country:  Germany
Manufacturer / Brand:  Elektroakustik Hartmannsdorf, EAH, VEB(K), (Ostd.)
Year: 1964 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz; Export model
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 3R12: 2 x 4.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Dorena Koffersuper TR 92 - Elektroakustik Hartmannsdorf,
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 285 x 180 x 85 mm / 11.2 x 7.1 x 3.3 inch
Notes

UKW 87.5 ... 104 MHz
Exportversion des Dorena 6402.

Diodenbuchse für TA/TB
Lautsprecherbuchse für Aussenlautsprecher
Oval-Lautsprecher 155 x 105 mm

Net weight (2.2 lb = 1 kg) 2.3 kg / 5 lb 1.1 oz (5.066 lb)
Source of data -- Original prospect or advert

Model page created by Franz Scharner. See "Data change" for further contributors.
