Schulmessverstärker 103 SV 58/44

Schulmessverstärker 103 SV 58/44; Elektro-Mechanik (ID = 423681) Equipment
Schulmessverstärker 103 SV 58/44; Elektro-Mechanik (ID = 2209452) Equipment Schulmessverstärker 103 SV 58/44; Elektro-Mechanik (ID = 2209456) Equipment
Schulmessverstärker 103 SV 58/44; Elektro-Mechanik (ID = 424475) Equipment Schulmessverstärker 103 SV 58/44; Elektro-Mechanik (ID = 424478) Equipment
Schulmessverstärker 103 SV 58/44; Elektro-Mechanik (ID = 424477) Equipment Schulmessverstärker 103 SV 58/44; Elektro-Mechanik (ID = 844806) Equipment
Schulmessverstärker 103 SV 58/44; Elektro-Mechanik (ID = 2103118) Equipment
Use red slider bar for more.
Schulmessverstärker 103 SV 58/44; Elektro-Mechanik (ID = 2209452) Equipment

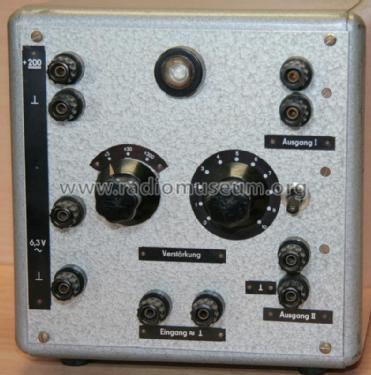

Elektro-Mechanik: Schulmessverstärker 103 SV 58/44 [Equipment] ID = 2209452 792x800
Select picture or schematic to display from thumbnails on the right and click for download.
For model Schulmessverstärker 103 SV 58/44, Elektro-Mechanik Berlin-Pankow, EMB; (Ostd.)

Country:  Germany
Manufacturer / Brand:  Elektro-Mechanik Berlin-Pankow, EMB; (Ostd.)
Year: 1958 Category: Service- or Lab Equipment
Valves / Tubes 2: EF86 EF89
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit. / 200 & 6,3 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Schulmessverstärker 103 SV 58/44 - Elektro-Mechanik Berlin-Pankow
Material Metal case
Shape Tablemodel, with any shape - general.
Notes

Verwendung als Messverstärker im NF-Bereich bis 300-fache Signal-Verstärkung.

Gedacht als Verstärker für Messungen am Schul-Oszillographen SO59/56  zusammen mit dem  Stromversorgungsgerät SV59/52.

Collectors' prices
Source of data -- Collector info (Sammler)

Model page created by Wolfgang Lill. See "Data change" for further contributors.
