Seefunksender EM20K41

Seefunksender EM20K41; Elektromekano; (ID = 1773233) TX Seefunksender EM20K41; Elektromekano; (ID = 1773234) TX
Seefunksender EM20K41; Elektromekano; (ID = 1777818) TX Seefunksender EM20K41; Elektromekano; (ID = 1777819) TX
Seefunksender EM20K41; Elektromekano; (ID = 1777820) TX
Use red slider bar for more.
Seefunksender EM20K41; Elektromekano; (ID = 1773233) TX
Elektromekano;: Seefunksender EM20K41 [TX] ID = 1773233 1400x814
Select picture or schematic to display from thumbnails on the right and click for download.
For model Seefunksender EM20K41, Elektromekano; København (Copenhagen)

Country:  Denmark
Manufacturer / Brand:  Elektromekano; København (Copenhagen)
Year: 1941–1945 Category: Transmitter (TX not Transceiver)

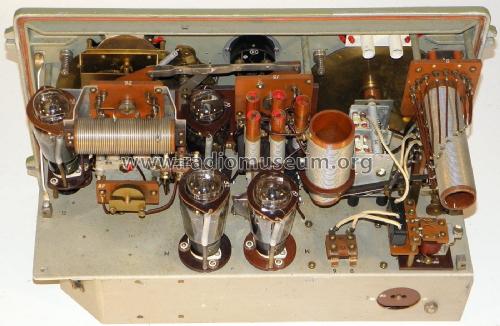

Valves / Tubes 4: S6 S6 M7 M7
Main principle Transmitter
Wave bands Short Wave (SW only)
Details
Power type and voltage Powered by external power supply or a main unit.
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Seefunksender EM20K41 - Elektromekano; København
Material Metal case
Shape Boatanchor (heavy military or commercial set).
Dimensions (WHD) 550 x 320 x 250 mm / 21.7 x 12.6 x 9.8 inch
Notes

Kurzwellensender, verwendet auf kleineren Schiffen der deutschen Kriegsmarine.
Frequenz 2,0 MHz bis 7,5 MHz in 5 Bereichen, durchstimmbar.
Betriebsarten A1, A2, A3. Sendeleistung 20 W.

Net weight (2.2 lb = 1 kg) 30 kg / 66 lb 1.3 oz (66.079 lb)

Model page created by Siegfried Droese. See "Data change" for further contributors.
