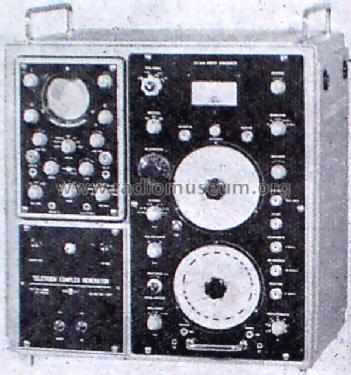

Fernseh-Service-Komplexgenerator 1221/S/TR-0805/H

Fernseh-Service-Komplexgenerator 1221/S/TR-0805/H; Hiradástechnika (ID = 523732) Equipment Fernseh-Service-Komplexgenerator 1221/S/TR-0805/H; Hiradástechnika (ID = 734706) Equipment
Fernseh-Service-Komplexgenerator 1221/S/TR-0805/H; Hiradástechnika (ID = 798403) Equipment Fernseh-Service-Komplexgenerator 1221/S/TR-0805/H; Hiradástechnika (ID = 798404) Equipment
Use red slider bar for more.
Fernseh-Service-Komplexgenerator 1221/S/TR-0805/H; Hiradástechnika (ID = 523732) Equipment
Hiradástechnika: Fernseh-Service-Komplexgenerator 1221/S/TR-0805/H [Equipment] ID = 523732 268x301
Select picture or schematic to display from thumbnails on the right and click for download.
For model Fernseh-Service-Komplexgenerator 1221/S/TR-0805/H, Hiradástechnika Szövetkezet (HTSZ); Budapest:
Funktechnik 24. 1963

Country:  Hungary
Manufacturer / Brand:  Hiradástechnika Szövetkezet (HTSZ); Budapest
Year: 1961–1963 ? Category: Service- or Lab Equipment
Valves / Tubes 10: ECC85 ECC85 ECC85 ECC85 EF184 EF184 EL84 PCC88 E81L
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Fernseh-Service-Komplexgenerator 1221/S/TR-0805/H - Hiradástechnika Szövetkezet
Material Metal case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes Fernseh-Service-Komplexgenerator TR-0805/H-1221/S, HF-Oszilator gemäß CCRI und OIRT-Normen, Wobbelgenerator, Oszillograph und Bildmustergenerator. CRT tube: D67-13A.
Price in first year of sale 122'000.00 Forint
Mentioned in - - Manufacturers Literature (Funktechnik 24. 1963)
Literature/Schematics (1) Magyar Műszerek Katalógusa, MIGÉRT, 1961.

Model page created by Karlheinz Fischer. See "Data change" for further contributors.
