• Country
• Yugoslavia

• Manufacturer / Brand
• Ei, Elektronska Industrija; Niš - see also RR

• Year
• 1967 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 225625

• • Brand: Ei

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes
• PC900 PCF801 PCF201 PCF200 PCL84 PL84 PCL86 PCH200 PCL85 PCF802 PL500 PY81 DY87 A59-11W

• Number of Transistors
• 4

• Semiconductors
• AF139 AF139 AF126 AC550

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Diplomat Luxus Major 67 UHF - Ei, Elektronska Industrija; Ni

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 700 x 400 x 500 mm / 27.6 x 15.7 x 19.7 inch

• Net weight (2.2 lb = 1 kg)
• 50 kg / 110 lb 2.1 oz (110.132 lb)

• Mentioned in

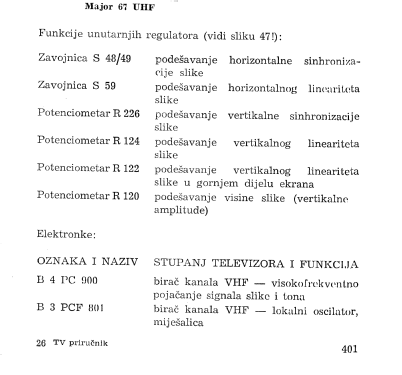

• -- Original prospect or advert (Book Opis šeme TV prijemnika Major 67)

• Author
• Model page created by Matic Krajsek. See "Data change" for further contributors.
