Lotos E

Lotos E; Elektronska (ID = 2444705) Radio Lotos E; Elektronska (ID = 2444708) Radio
Lotos E; Elektronska (ID = 2444707) Radio Lotos E; Elektronska (ID = 2444706) Radio
Lotos E; Elektronska (ID = 2444704) Radio Lotos E; Elektronska (ID = 2444709) Radio
Lotos E; Elektronska (ID = 2433053) Radio Lotos E; Elektronska (ID = 2433055) Radio
Lotos E; Elektronska (ID = 2433054) Radio
Use red slider bar for more.
Lotos E; Elektronska (ID = 2444705) Radio
Elektronska: Lotos E [Radio] ID = 2444705 1400x940

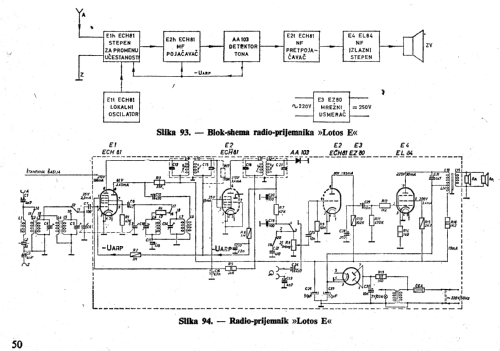

Select picture or schematic to display from thumbnails on the right and click for download.
For model Lotos E, Elektronska Industrija (Ei); Niš

Country:  Yugoslavia
Manufacturer / Brand:  Elektronska Industrija (Ei); Niš
Brand

Ei
Year: 1960 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH81 ECH81 EL84 EZ80
Main principle Superheterodyne (common)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Lotos E - Elektronska Industrija Ei; Niš
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 334 x 180 x 160 mm / 13.1 x 7.1 x 6.3 inch
Notes

Elektronska Industrija Lotos E

Exteriormente idéntica al modelo Lotos U con la variante de ser un circuito compuesto por 4 válvulas. Incorpora un transformador independiente para la alimentación de los filamentos, y salida para fono.

Model page created by Francisco Perez Hurtado. See "Data change" for further contributors.
