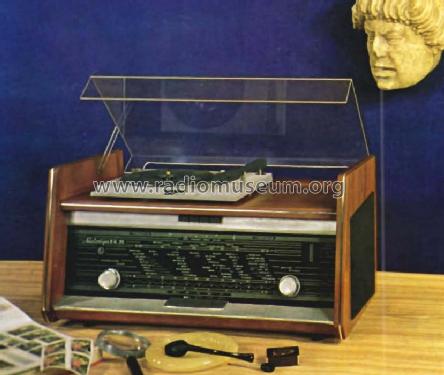

Melodija RG70

Ei, Elektronska Industrija; Niš - see also RR

Data
Forum
Pictures
Collections

  • Year
  • 1970/1971
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 169770
    • Brand: Ei

 Technical Specifications

  • Number of Tubes
  • 5
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); ZF/IF 452 kHz
  • Tuned circuits
  • 7 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 2.5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Melodija RG70 - Ei, Elektronska Industrija; Ni
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 575 x 298 x 291 mm / 22.6 x 11.7 x 11.5 inch
  • Notes

  • Wavebands:
    SW = 6 - 18 MHz
    MW = 520 - 1620 kHz
    LW = 150 - 330 kHz

    Tone register with 4 push buttons.
    4 speed record player 78, 45, 33 and 16 rpm. Double sapphire cartridge.

    Speaker: DZ 0750/N-1

  • Mentioned in
  • -- Original prospect or advert (Radioprijemnici i pribor, '70/71)
