F740W

F740W; Elektro- und (ID = 1013790) Radio F740W; Elektro- und (ID = 1013791) Radio
F740W; Elektro- und (ID = 1013792) Radio F740W; Elektro- und (ID = 1013793) Radio

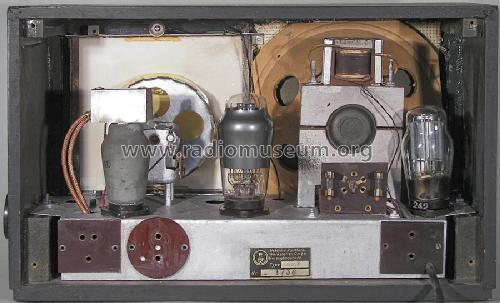

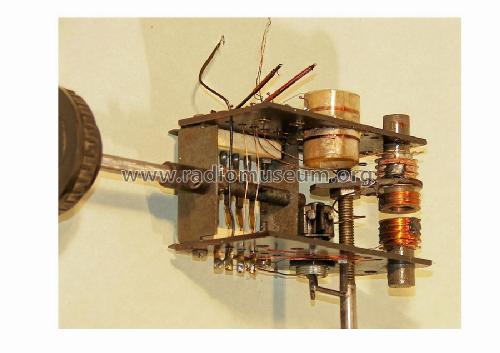

F740W; Elektro- und (ID = 1013795) Radio F740W; Elektro- und (ID = 1013797) Radio
Use red slider bar for more.
F740W; Elektro- und (ID = 1013790) Radio
Elektro- und: F740W [Radio] ID = 1013790 900x603
Select picture or schematic to display from thumbnails on the right and click for download.
For model F740W, Elektro- und Rundfunkwerkstätten GmbH; Herzogenaurach

Country:  Germany
Manufacturer / Brand:  Elektro- und Rundfunkwerkstätten GmbH; Herzogenaurach
Year: 1949/1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: AF7 AL4 AZ1
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: F740W - Elektro- und
Material Wooden case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 400 x 250 x 170 mm / 15.7 x 9.8 x 6.7 inch
Net weight (2.2 lb = 1 kg) 5.2 kg / 11 lb 7.3 oz (11.454 lb)
Price in first year of sale 148.00 DM
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Funkschau (4914)


All listed radios etc. from Elektro- und Rundfunkwerkstätten GmbH; Herzogenaurach
Here you find 2 models, 1 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
