Elfa 201-3s (201-3 stereo) ("201-3c")

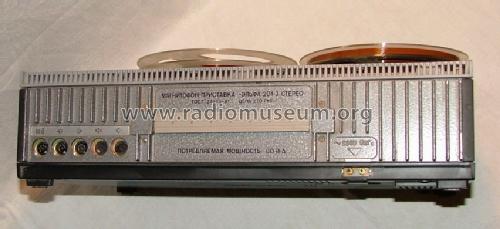

Elfa 201-3s ; ELFA (ID = 90421) R-Player Elfa 201-3s ; ELFA (ID = 90422) R-Player
Elfa 201-3s ; ELFA (ID = 160513) R-Player
Use red slider bar for more.
Elfa 201-3s ; ELFA (ID = 90421) R-Player
ELFA: Elfa 201-3s [R-Player] ID = 90421 631x636
Select picture or schematic to display from thumbnails on the right and click for download.
For model Elfa 201-3s (201-3 stereo) ('201-3c'), ELFA Elektrotechnical Works, Vilnius

Country:  Lithuania (Lithuania, Vilnius)
Manufacturer / Brand:  ELFA Elektrotechnical Works, Vilnius
alternative name

Vilnius Electrotechnical Works
Year: 1986 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Elfa 201-3s - ELFA Elektrotechnical Works,
Material Various materials
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 480 x 160 x 320 mm / 18.9 x 6.3 x 12.6 inch
Notes two tape speeds: 19,05 cm/sek (4x45 min. mono, 2x45min. stereo), 9,53 cm/sek (4x90 min. mono, 2x90 min. stereo). Amplifier 2x10 W inside. 1 watt control loudspeaker.
Net weight (2.2 lb = 1 kg) 13 kg / 28 lb 10.1 oz (28.634 lb)

Model page created by Zenonas Langaitis. See "Data change" for further contributors.
