Daina (Elfa-29)

Daina ; ELFA (ID = 188471) R-Player

Daina ; ELFA (ID = 188436) R-Player
Daina ; ELFA (ID = 89741) R-Player Daina ; ELFA (ID = 462003) R-Player
Use red slider bar for more.
Daina ; ELFA (ID = 89741) R-Player
ELFA: Daina [R-Player] ID = 89741 776x545

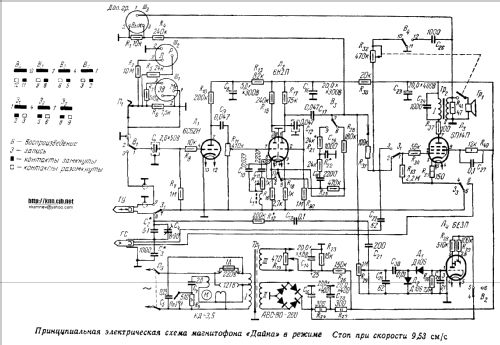

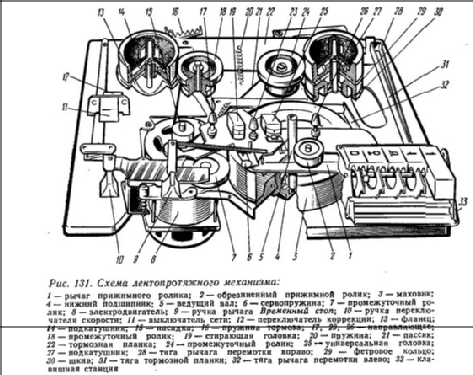

Select picture or schematic to display from thumbnails on the right and click for download.

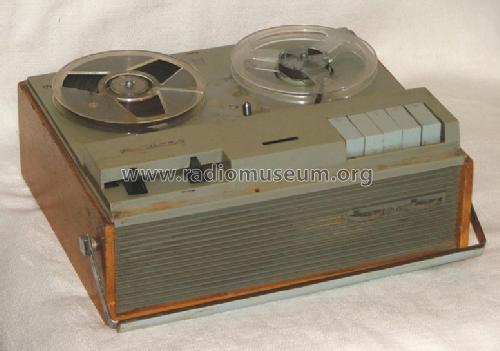

For model Daina (Elfa-29), ELFA Elektrotechnical Works, Vilnius

Country:  Lithuania (Lithuania, Vilnius)
Manufacturer / Brand:  ELFA Elektrotechnical Works, Vilnius
alternative name

Vilnius Electrotechnical Works
Year: 1970 Category: Sound/Video Recorder and/or Player
Valves / Tubes 4: 6С62Н 6Н2П 6Е3П 6П14П
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 127/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Daina - ELFA Elektrotechnical Works,
Material Wooden case
Dimensions (WHD) 370 x 155 x 240 mm / 14.6 x 6.1 x 9.4 inch
Notes Mono, two speeds (9,53 and 2,38 cm/sek). 2x60 and 2x240 min. Tape capacity - 360 m. Speed 2,38 cm/sek - special for phonograms blidness books. Later this tape recorder produced with transistors.
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)

Model page created by Zenonas Langaitis. See "Data change" for further contributors.



All listed radios etc. from ELFA Elektrotechnical Works, Vilnius
Here you find 36 models, 35 with images and 18 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
