Vilnius Elfa 12

Vilnius Elfa 12; ELFA (ID = 159603) R-Player
Vilnius Elfa 12; ELFA (ID = 246238) R-Player Vilnius Elfa 12; ELFA (ID = 246239) R-Player
Vilnius Elfa 12; ELFA (ID = 246240) R-Player Vilnius Elfa 12; ELFA (ID = 246241) R-Player

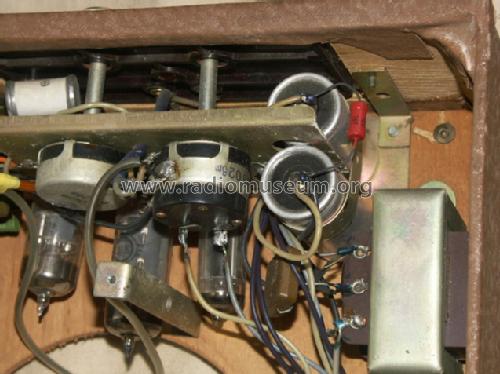

Vilnius Elfa 12; ELFA (ID = 246242) R-Player Vilnius Elfa 12; ELFA (ID = 246243) R-Player
Vilnius Elfa 12; ELFA (ID = 246482) R-Player Vilnius Elfa 12; ELFA (ID = 248053) R-Player
Use red slider bar for more.
Vilnius Elfa 12; ELFA (ID = 246238) R-Player
ELFA: Vilnius Elfa 12 [R-Player] ID = 246238 551x698
Select picture or schematic to display from thumbnails on the right and click for download.
For model Vilnius Elfa 12, ELFA Elektrotechnical Works, Vilnius:
Thanks for D.Gurjanov, Russia

Country:  Lithuania (Lithuania, Vilnius)
Manufacturer / Brand:  ELFA Elektrotechnical Works, Vilnius
alternative name

Vilnius Electrotechnical Works
Year: 1960 ? Category: Sound/Video Recorder and/or Player
Valves / Tubes 3: 6Н2П 6П1П 6Ц4П
Main principle Audio-Amplification
Wave bands - without
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Vilnius Elfa 12 - ELFA Elektrotechnical Works,
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 280 x 260 x 180 inch / 7112 x 6604 x 4572 mm
Notes Piezoelectric tone-arm, 33 1/3 and 78 rpm.
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Source of data -- Original-techn. papers.
Mentioned in -- Schematic

Model page created by Zenonas Langaitis. See "Data change" for further contributors.
