• Year
  • 1962
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 75270
    • alternative name: Vilnius Electrotechnical Works

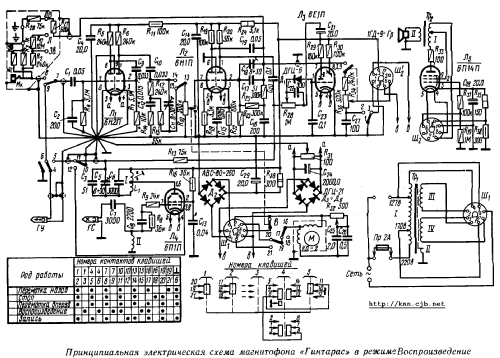

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Details
  • Tape Recorder
  • Power type and voltage
  • Alternating Current supply (AC) / 110/220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 1 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Gintaras - ELFA Elektrotechnical Works,
  • Dimensions (WHD)
  • 385 x 180 x 346 mm / 15.2 x 7.1 x 13.6 inch
  • Notes
  • Mono, speed 19,05 cm/sek. Recording tape capacity 350 meters, 30 min. one track.
  • Net weight (2.2 lb = 1 kg)
  • 15 kg / 33 lb 0.6 oz (33.04 lb)
  • Mentioned in
  • -- Original-techn. papers. (Past Soviet Union magazine RADIO Nr.06 - 1961)
  • Author
  • Model page created by Zenonas Langaitis. See "Data change" for further contributors.

 Collections | Museums | Literature

Collections

The model Gintaras (Elfa-19) is part of the collections of the following members.
