Hochspannungstrafo HT 102 6808.02
ELFEMA, Elektro-Feinmechanik Mittweida; (Ostd.)
- Country
- Germany
- Manufacturer / Brand
- ELFEMA, Elektro-Feinmechanik Mittweida; (Ostd.)
- Year
- 1978 ?
- Category
- Radio module post 1925 (not a part, not a key)
- Radiomuseum.org ID
- 328315
- Wave bands
- - without
- Loudspeaker
- - - No sound reproduction output.
- Material
- Various materials
- from Radiomuseum.org
- Model: Hochspannungstrafo HT 102 6808.02 - ELFEMA, Elektro-Feinmechanik
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 120 x 90 x 100 mm / 4.7 x 3.5 x 3.9 inch
- Notes
-

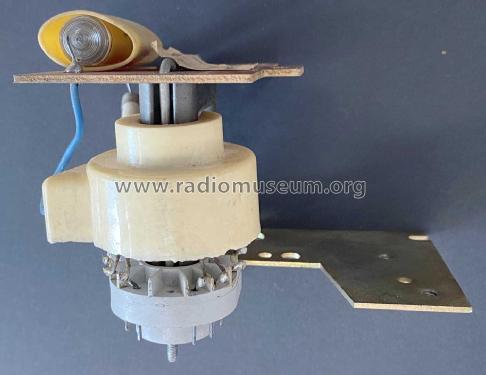

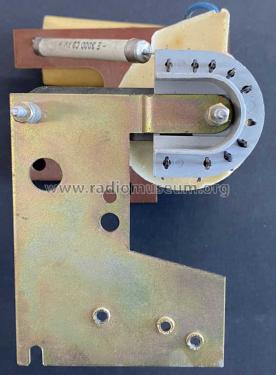

Der HT102 ist ein Hochspannungstrafo - kein Zeilentrafo im herkömmlichen Sinne. Er dient zur Bereitstellung von 3 Gleichspannungen.
Verwendet in diversen Farbfernsehgeräten Chromat 1060, 2060, 2366 usw.
- Net weight (2.2 lb = 1 kg)
- 0.318 kg / 0 lb 11.2 oz (0.7 lb)
- Author
- Model page created by Volker MARTIN. See "Data change" for further contributors.
