LR-10

LR-10; Eltax A/S; Aulum (ID = 2076301) Speaker-P
Use red slider bar for more.
LR-10; Eltax A/S; Aulum (ID = 2076301) Speaker-P

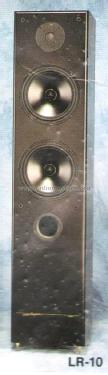

Eltax A/S; Aulum: LR-10 [Speaker-P] ID = 2076301 407x1407
Select picture or schematic to display from thumbnails on the right and click for download.
For model LR-10, Eltax A/S; Aulum:
Foto Catalogo Eltax

Country:  Denmark
Manufacturer / Brand:  Eltax A/S; Aulum
Year: 1995 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 3 Loudspeakers
Power out 170 W (280 W max.)
from Radiomuseum.org Model: LR-10 - Eltax A/S; Aulum
Material Various materials
Shape Console with any shape - in general
Dimensions (WHD) 264 x 1180 x 368 mm / 10.4 x 46.5 x 14.5 inch
Notes

Speaker boss, sistem 2 way bass reflex, dome-tweter  1",  2x woofer 8", impedance 8 Ω, frequency response 40 - 22000 Hz.

Mentioned in - - Manufacturers Literature

Model page created by Manuel Albano Neves. See "Data change" for further contributors.



All listed radios etc. from Eltax A/S; Aulum
Here you find 27 models, 27 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
