Nexus 8e

Nexus 8e; Eltax A/S; Aulum (ID = 2076828) Speaker-P
Use red slider bar for more.
Nexus 8e; Eltax A/S; Aulum (ID = 2076828) Speaker-P

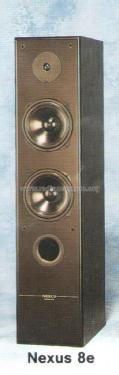

Eltax A/S; Aulum: Nexus 8e [Speaker-P] ID = 2076828 446x1400
Select picture or schematic to display from thumbnails on the right and click for download.
For model Nexus 8e, Eltax A/S; Aulum:
Foto Catalogo Eltax

Country:  Denmark
Manufacturer / Brand:  Eltax A/S; Aulum
Year: 1995 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Nexus 8e - Eltax A/S; Aulum
Material Various materials
Shape Console with any shape - in general
Dimensions (WHD) 215 x 960 x 297 mm / 8.5 x 37.8 x 11.7 inch
Notes

Speakers box, musicpower 200 W, sinuspower 100 W, system 2 way bassreflex, dome-tweeter 3/4", woofer 6 1/2", impedance 8 Ohms, freq-response 45-20000 Hz, frontgrille detachable.

Mentioned in - - Manufacturers Literature

Model page created by Manuel Albano Neves. See "Data change" for further contributors.



All listed radios etc. from Eltax A/S; Aulum
Here you find 27 models, 27 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
