• Year
  • 1947/1948
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 14440

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); ZF/IF 473 kHz
  • Tuned circuits
  • 4 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 220 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 11 cm = 4.3 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Super 347 GW - Eltra GmbH, Elektrotechnische

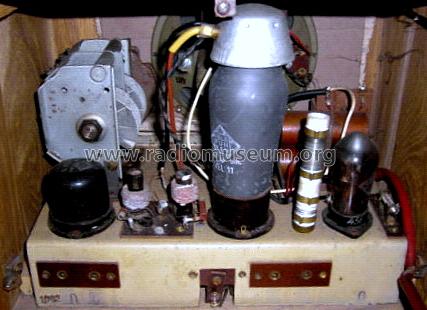

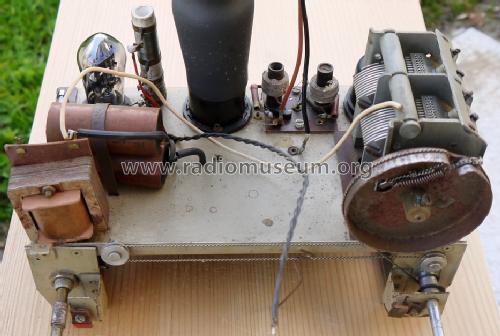

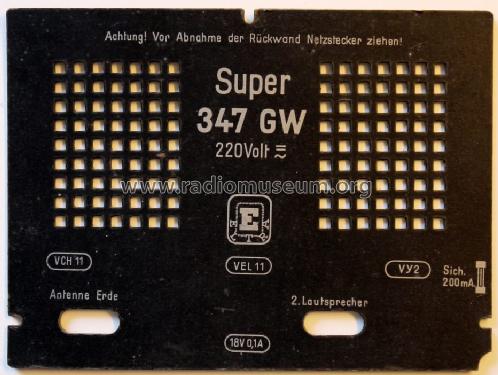

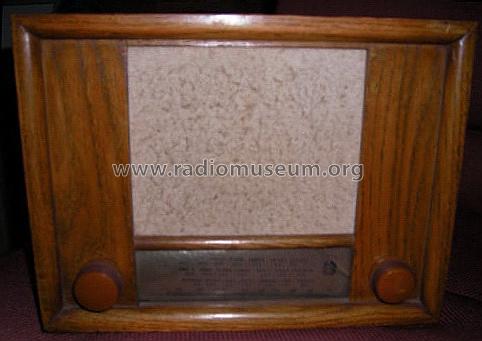

  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 280 x 220 x 180 mm / 11 x 8.7 x 7.1 inch
  • Notes
  • auch Mod. GW-A
  • Net weight (2.2 lb = 1 kg)
  • 4.1 kg / 9 lb 0.5 oz (9.031 lb)
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Circuit diagram reference
  • Lange-Nowisch
  • Picture reference
  • Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.
