Koliber 3 MOT633

Koliber 3 MOT633; Unitra ELTRA; (ID = 1186350) Radio
Koliber 3 MOT633; Unitra ELTRA; (ID = 265089) Radio Koliber 3 MOT633; Unitra ELTRA; (ID = 265093) Radio
Koliber 3 MOT633; Unitra ELTRA; (ID = 265091) Radio Koliber 3 MOT633; Unitra ELTRA; (ID = 265090) Radio
Koliber 3 MOT633; Unitra ELTRA; (ID = 1308586) Radio
Use red slider bar for more.

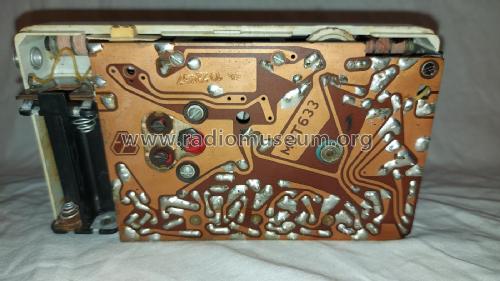

Koliber 3 MOT633; Unitra ELTRA; (ID = 265089) Radio
Unitra ELTRA;: Koliber 3 MOT633 [Radio] ID = 265089 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Koliber 3 MOT633, Unitra ELTRA; Zaklady Radiowe; Bydgoszcz

Country:  Poland
Manufacturer / Brand:  Unitra ELTRA; Zaklady Radiowe; Bydgoszcz
Year: 1965 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: TG40 TG39 TG39 TG37 TG-5 TG50 TG50
Main principle Super-Heterodyne (Super in general); ZF/IF 465 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out 0.08 W (unknown quality)
from Radiomuseum.org Model: Koliber 3 MOT633 - Unitra ELTRA; Zaklady Radiowe;
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 160 x 90 x 40 mm / 6.3 x 3.5 x 1.6 inch
Notes 2× TG50.
Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)
Collectors' prices
Source of data -- Schematic

Model page created by Franz Scharner. See "Data change" for further contributors.



All listed radios etc. from Unitra ELTRA; Zaklady Radiowe; Bydgoszcz
Here you find 90 models, 82 with images and 43 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
